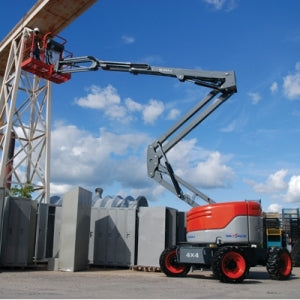

Articulating Boom

Skyjack’s SJ 46AJ

Standard Features:
• 46’5” (14.1 m) Platform Height
• 5’ (1.5 m) Jib
• 500 lbs (227 kg) Capacity
• 25’2” (7.7 m) Horizontal Reach
• 25’0” (7.6 m) Up and Over Height
• 360° Continuous Turret Rotation
• 30” x 72” (0.8 x 1.8 m) Platform Size
• Axle based 4WD system
• Operator controlled locking rear differential and limited slip front differential
• Oscillating axle
• Drivable at full height
• 360° continuous turret rotation
• 45% Gradeability
• 48 HP Deutz Diesel or 82 HP GM Dual Fuel engine
• Swing out engine tray
• Swing up cowlings
• Modular platform railing system
• Spring hinged gate
• 110V AC outlet on platform with GFI
• Direction sensing drive and steer controls
• Proportional controls
• Relay based control system
• Color coded and numbered wiring
• Hourmeter
• Operator horn
• All motion alarm
• Tie down/lifting lugs
• Wet disc SAHR brakes (rear axle)
• 315/55 D20 grip lug air-filled tires

Options (Capacities, and machine weights may differ when options are added):
• 30” x 60” (0.8 x 1.5 m) Platform
• 3.5 kW generator (Includes hydraulic oil cooler)
• Cold weather start kit (Includes cold start engine oil, battery blanket, and hydraulic tank heater)
• Diesel scrubber
• Hydraulic oil cooler
• Flashing light
• Platform work lights
• 1/2” airline to platform
• 2WD
• Glazier kit

Tire Options (Capacities, and machine weights may differ when options are added):
• Grip lug air-filled non-marking tires
• Grip lug foam-filled non marking tires
• Grip lug foam-filled tires
• Tire sealant
• High flotation air-filled tires
